陶瓷電容器
ELECTRICAL SPECIFICATION TEMPERATURE DEPENDENCY OF CAPACITANCE
Capacitance Range: 10PF to 100,000PF
CLASS I: Test at 1.0±0.2V RMS, +25℃ and 1MHZ
CLASS II: Test at 1.0±0.2V RMS, +25℃ and 1KHZ
CLASSIII: Test at 0.5±0.2VRMS, +25℃ and 1KHZ.
Capacitance Tolerance:
J: ±5% (NP0, COG and SL)
K: ±10% (NP0, COG, SL, X7R, Y5E and Y5P)
M: ±20% (Z5U and Y5U)
Z: + 80%-20% (Z5V and Y5V)
Working Voltage:
500V, 1000V, 2000V, 3000V,.............15KV
Dielectric Strength:
1KV to 3KV: 200% rated voltage with 50mA max charging current.
4KV and above: 150% rated voltage with 50mA max charging current.
Dissipation Factor:
CLASS I (30PF blow): Test at 1.0±0.2V RMS, +25℃ and 1MHZ, Q>400+20*Cap
CLASS I (30PF above): Test at 1.0±0.2V RMS, +25℃ and 1MHZ, Q≧1000
CLASS II: Test at 1.0±0.2V RMS, +25℃ and 1KHZ, 5% max for Y5V, 4% max for Z5V, 2.5% max for other
CLASSIII: Test at 0.5±0.2V RMS, +25℃ and 1KHZ.
Insulation Resistance:
Working voltage 500V and blow: 10,000 Megohms min at rate working voltage and 25℃
Working voltage 500V and above: 10,000 Megohms min at 500Vdc and 25℃
Humidity Test:
|
Capacitance Change |
T.C. |
Capacitance Change |
Per EIA RS-198-C, method B3, Condition B. |
|
F |
30% Max |
||
|
other |
20% Max |
||
|
|
|
|
|
|
D.F. |
T.C. |
Dissipation Factor: |
|
|
|
F |
5.0% Max |
|
|
other |
3.0% Max |
Life Test:
|
Capacitance Change |
T.C. |
Capacitance Change |
Per EIA RS-198-C, method C2, Condition C, at 85±2℃, and 200% rated working voltage. (150% for parts rated over 500Vdc)
|
|
F |
30% Max |
||
|
other |
20% Max |
||
|
|
|
|
|
|
D.F. |
T.C. |
Dissipation Factor: |
|
|
|
F |
5.0% Max |
|
|
|
other |
3.0% Max |
|
|
|
|
|
|
|
I. R. |
T.C. |
Insulation Resistance |
|
|
|
all |
10,000 Megohms min |
TEMPERATURE DEPENDENCY OF CAPACITANCE
Parts Number System
|
|
E |
B |
102 |
K |
3D |
5 |
L |
1 |
C |
|
|
|
―― |
―― |
―― |
―― |
―― |
―― |
―― |
―― |
―― |
|
|
|
1) |
2) |
3) |
4) |
5) |
6) |
7) |
8) |
9) |
|
|
1) Coating: |
|
5)Rated Voltage: |
|
8) Lead Style: |
|
|||||||
|
E: |
Epoxy Coating |
|
2H= |
500V |
DC |
1= |
Straight type |
|||||
|
D: |
Durez Coating |
|
3A= |
1KV |
DC |
φ=0.6 mm |
||||||
|
|
|
|
3B= |
1.2KV |
DC |
2= |
Straight type |
|||||
|
2)Temp. Char.: |
|
3C= |
1.5KV |
DC |
φ=0.65 mm |
|||||||
|
C= |
NPO, COG |
|
3D= |
2KV |
DC |
3= |
Straight type |
|||||
|
S= |
SL=P350-N1000 |
|
3E= |
2.5KV |
DC |
φ=0.8 mm |
||||||
|
X= |
X7R |
|
3F= |
3KV |
DC |
4= |
Outside kink type |
|||||
|
B= |
Y5E/Y5P |
|
3G= |
4KV |
DC |
φ=0.6 mm |
||||||
|
E= |
Y5U/Z5U |
|
3H= |
5KV |
DC |
5= |
Outside kink type |
|||||
|
F= |
Y5V/Z5V |
|
3I= |
6KV |
DC |
φ=0.65 mm |
||||||
|
|
3J= |
8KV |
DC |
6= |
Outside kink type |
|||||||
|
|
4A= |
10KV |
DC |
φ=0.8 mm |
||||||||
|
|
4B= |
12KV |
DC |
7= |
Inside kink type |
|||||||
|
|
4C= |
15KV |
DC |
φ=0.6 mm |
||||||||
|
3)Capacitance: |
|
4D= |
20KV |
DC |
8= |
Inside kink type |
||||||
|
101=10x10=100PF |
|
φ=0.65 mm |
||||||||||
|
222=22x100=2,200PF |
|
9= |
Inside kink type |
|||||||||
|
103=10x1000 |
|
φ=0.8 mm |
||||||||||
|
|
=10,000PF |
|
|
|
|
|
|
|
||||
|
|
|
|
6)Lead Space: |
|
|
|
|
|||||
|
4)Tolerance: |
|
5= |
5.00±1.0mm |
|
|
|
||||||
|
C= |
±0.25PF |
|
6= |
6.35±1.0mm |
|
|
|
|
||||
|
D= |
±0.5PF |
|
7= |
7.50±1.0mm |
|
9)Mark |
|
|||||
|
J= |
±5% |
|
9= |
9.50±1.0mm |
|
B= |
B |
(T.C.) |
||||
|
K= |
±10% |
|
|
|
|
|
102K |
(Capacitance) |
||||
|
M= |
±20% |
|
7)Lead length: |
|
|
2KV |
(Voltage) |
|||||
|
Z= |
+80%-20% |
|
5= |
5.0±2.0mm |
|
C= |
102K |
(Capacitance) |
||||
|
|
|
|
M= |
10.0±2.0mm |
|
|
2KV |
(Voltage) |
||||
|
|
|
|
L= |
<32mm |
|
F= |
|
(Logo) |
||||
|
|
|
|
T= |
TAPING REEL |
|
102K |
(Capacitance) |
|||||
|
|
|
|
A= |
AMMO BOX |
|
2KV |
(Voltage) |
|||||

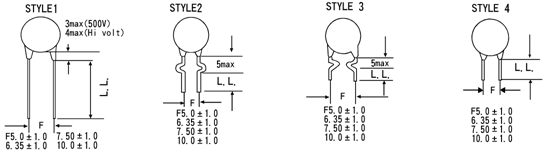

SPECIAL LEAD TYPE OF DISC CAPACITORS
DIMENSIONS (UNIT MILLIMETER)
TAPING LEAD CAPACITORS FOR AUTOMATIC INSERTION
|
Symbol |
D |
d |
P |
P0 |
P1 |
P2 |
F |
H0 |
H |
H1 |
D0 |
W |
L |
T |
|
Value |
Max |
0.6 |
12.7 |
12.7 |
3.85 |
6.35 |
5.0 |
16.0 |
20 |
Max |
4.0 |
18.0 |
Max 11.0 |
0.7 |
|
11.0 |
18.0 |
23 |
32 25 |
|||||||||||
|
Tolerance |
---- |
+0.06 -0.05 |
±1 |
±0.2 |
±0.7 |
±1.0 |
+0.8 -0.2 |
±1.0 |
±1.0 |
------ |
±0.2 |
±0.5 |
----- |
±0.2 |
PACKING QUANTITY
|
|
Package |
One Box |
Carton Box |
|
|
Reel Pack |
2,500 PCS |
25,000 PCS |
|
|
Box Pack |
2,000 PCS |
20,000 PCS |
REEL AND BOX DIMESSIONS(mm)
