X1/Y2安規陶瓷電容器
ELECTRICAL SPECIFICATION TEMPERATURE DEPENDENCY OF CAPACITANCE
APPROVAL STANDARD AND FILE NO Parts Number System
Capacitance Range: 100PF to 10000PF
Test at 1.0±0.2V RMS +25℃ and 1KHZ
Capacitance Tolerance:
K: ±10%, M: ±20%
Working Voltage:
UL, CUL : 250VAC
VDE : 400VAC, 250VAC
Dielectric Strength:
2600VAC For 60 Seconds
Dissipation Factor:
B (Y5P), E (Y5U): 2.5% max., test at 1.0±0.2VRMS,25℃ at 1KHZ.
F (Y5V): 5.0% Max., test at 1.0±0.2VRMS,25℃ at 1KHZ.
Insulation Resistance:
10,000 Megohms min at 500VDC
Temperature Characteristics:
|
T.C. |
Cap. Change |
Temp. Range |
|
B (Y5P) |
±10% |
-25℃ to +85℃ |
|
E (Y5U) |
+22-56% |
-25℃ to +85℃ |
|
F (Y5V) |
+22-82% |
-25℃ to +85℃ |
Humidity Test:
|
Capacitance Change |
T.C. |
Capacitance Change |
Capacitors shall be subjected to a temperature of 40±2℃ and relative humidity between 90-95% for 500±12 hours. And maintained at normal temperature and humidity for a period of 4-24 hours. |
|
Y5P |
10% max |
||
|
Y5U |
20% max |
||
|
Y5V |
30% max |
||
|
|
|
|
|
|
D.F. |
T.C. |
Dissipation Factor: |
|
|
Y5P |
5.0% max |
||
|
Y5U |
5.0% max |
||
|
Y5V |
7.5% max |

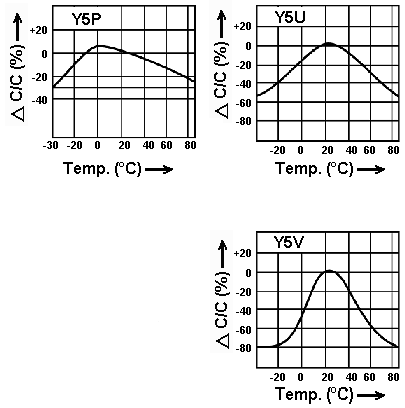

TEMPERATURE DEPENDENCY OF CAPACITANCE
|
Agencies |
Country |
Standard No. |
Recognized File No. |
Class & W.V. |
Capacitance Values |
|
UL |
USA |
UL1414 |
E189495 |
AC250V |
101-103 |
|
CUL |
Canada |
UL1414 |
E189495 |
AC250V |
101-103 |
|
VDE |
Germany & Europe |
IEC384-14 2nd Ed.1993 EN132 400:1994 |
104855 |
X1: 400VAC Y2: 250VAC |
101-103 |
|
|
E |
B |
101 |
K |
2V |
7 |
L |
1 |
K |
|
|
|
―― |
―― |
―― |
―― |
―― |
―― |
―― |
―― |
―― |
|
|
|
1) |
2) |
3) |
4) |
5) |
6) |
7) |
8) |
9) |
|
|
1) Coating: |
E: |
Epoxy Coating |
6)Lead Space: |
5= |
5.0mm |
|
||
|
|
|
|
|
|
7= |
7.5mm |
|
|
|
|
|
|
|
|
9= |
9.5mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
2)Temp. Char.: |
B= |
Y5P |
|
7)Lead length: |
L= |
25mm |
|
|
|
|
E= |
Y5U |
|
|
M= |
10mm |
|
|
|
|
F= |
Y5V |
|
|
5= |
5mm |
|
|
|
|
|
|
|
|
T= |
Taping Reel |
||
|
|
|
|
|
|
A= |
AMMO BOX |
||
|
3)Capacitance: |
101=10x10=100PF |
8) Lead Style: |
1= |
Straight type |
||||
|
|
102=10x100=1,000PF |
|
4= |
Outside kink type |
||||
|
|
103=10x1000 |
|
7= |
Inside kink type |
||||
|
|
= |
10,000PF |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
4)Tolerance: |
K= |
±10% |
|
9)Mark |
K= |
Standard Marking |
||
|
|
M= |
±20% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5)Rated Voltage: |
2T= |
250VAC |
|
|
|
|
||
|
2V= |
400VAC |
|||||||
|

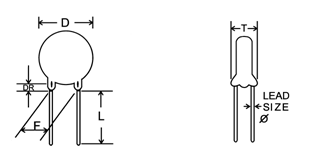

R.V. |
CAP. |
TOL. % |
T.C. |
D. ±1.0mm |
F. ±1.0mm |
L. mm |
DR mm. |
L.S. ±0.05 mm |
T. mm |
|
|
|
101K |
±10 |
Y5P |
6 |
5 / 7.5 |
|
|
|
|
|
|
|
151K |
±10 |
Y5P |
6 |
5 / 7.5 |
|
|
|
|
|
|
|
221K |
±10 |
Y5P |
7 |
5 / 7.5 |
|
|
|
|
|
|
|
331K |
±10 |
Y5P |
7 |
5 / 7.5 |
|
|
|
|
|
|
|
471K |
±10 |
Y5P |
8 |
5 / 7.5 |
|
|
|
|
|
|
AC250V |
681K |
±10 |
Y5P |
8 |
5 / 7.5 |
< 32 |
<3.5 |
0.6 |
< 7 |
|
|
AC400V |
681M |
±20 |
Y5U |
7 |
5 / 7.5 |
|
|
|
|
|
|
|
102M |
±20 |
Y5U / Y5V |
7 / 6 |
5 / 7.5 |
|
|
|
|
|
|
|
152M |
±20 |
Y5U / Y5V |
8 / 7 |
5 / 7.5 |
|
|
|
|
|
|
|
222M |
±20 |
Y5U / Y5V |
9 / 8 |
7.5 / 9.5 |
|
|
|
|
|
|
|
332M |
±20 |
Y5U / Y5V |
11 / 9 |
7.5 / 9.5 |
|
|
|
|
|
|
|
472M |
±20 |
Y5U / Y5V |
13 / 11 |
7.5 / 9.5 |
|
|
|
|
|
|
|
103M |
±20 |
Y5V |
17 |
7.5 / 9.5 |
|
|
|
|
